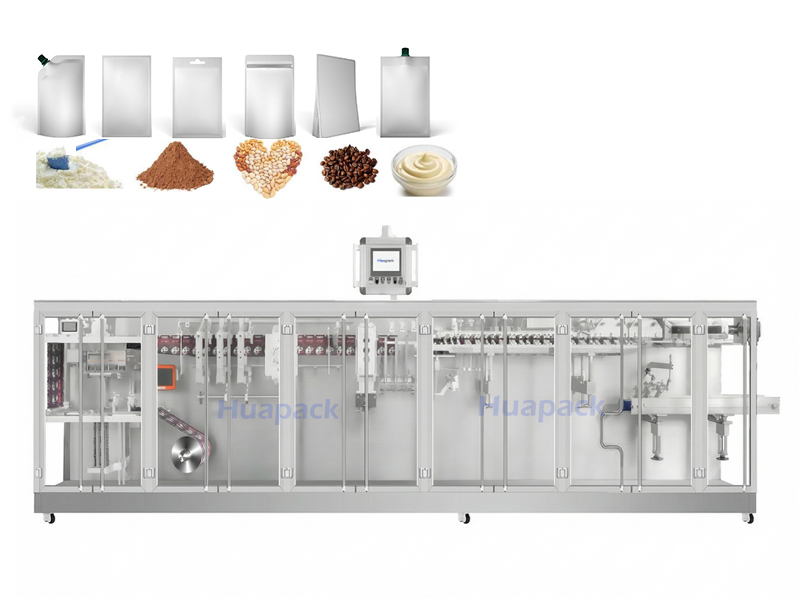

High Speed Horizontal Form Fill Seal Machine

High Speed Horizontal Form Fill Seal Machine:

The high speed horizontal form fill seal machine is HUAPACK multi-lane packaging solution designed for high-volume production. This advanced horizontal packaging model seamlessly adapts to various heat-sealing multi-layer composite films, delivering consistent, high-quality packaging results.

Equipped with a newly designed multi-bagging mechanism, the machine produces multiple bags simultaneously, making it a versatile, all-in-one system that integrates bag making, measuring, filling, sealing and cutting. Whether you are packaging food, pharmaceuticals, chemicals or daily necessities, this machine is the ideal packaging solution for businesses looking to boost productivity and reduce labor costs.

Packaging machine application range

• 1. Liquids: detergent, wine, soy sauce, vinegar, juice, beverage, ketchup, jam, chili sauce, bean paste.
• 2. Blocks: peanuts, jujubes, potato chips, rice noodles, nuts, candy, chewing gum, pistachios, melon seeds, nuts, pet food, etc.
• 3. Granules: condiments, additives, crystalline seeds, seeds, granulated sugar, soft white sugar, chicken essence, grains, agricultural products.
• 4. Powder: flour, seasoning, milk powder, glucose, chemical seasoning, pesticide, fertilizer

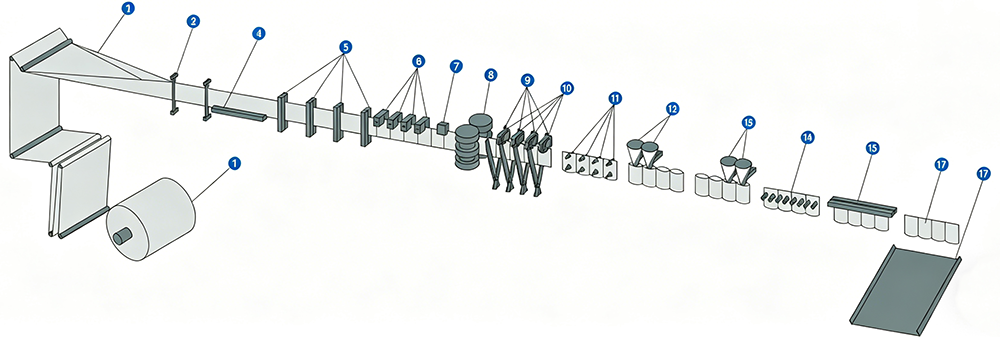

Process flow



1.  Film Unwind   2. Pouch Forming   3. Film Guide   4.  Bottom Seal   5. Vertical Seal    6. Tear Notch   7. Photocell   8. Servo Advance    9. Cutting   10. Pouch Mechanism    11. Pouch Opening   12. Filling I   13. Filling II   14. Pouch Stretching   15. Heat Sealing   16. Finished Product   17. Output

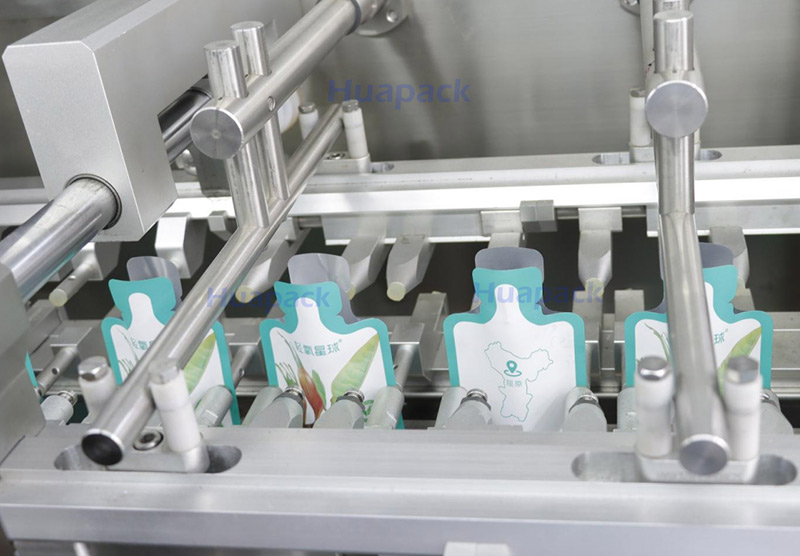

Pouch Sample



Parameters

Model		Triplex Model:270TN-AS	Quadruplex Model:HC-400NQ
Pouch Size(mm)	Min	60*90	65*130
	Max	90*180	90*200
Fillling Volume	ml	100	100
Packaging Speed	ppm	145-160	200-300
Machine Size	mm	6172*980*1573	9800×1100×1500
Machine Weight	kg	3000	4000
Power	kw	8	11.5
Air Consumption	l/min	500	650
